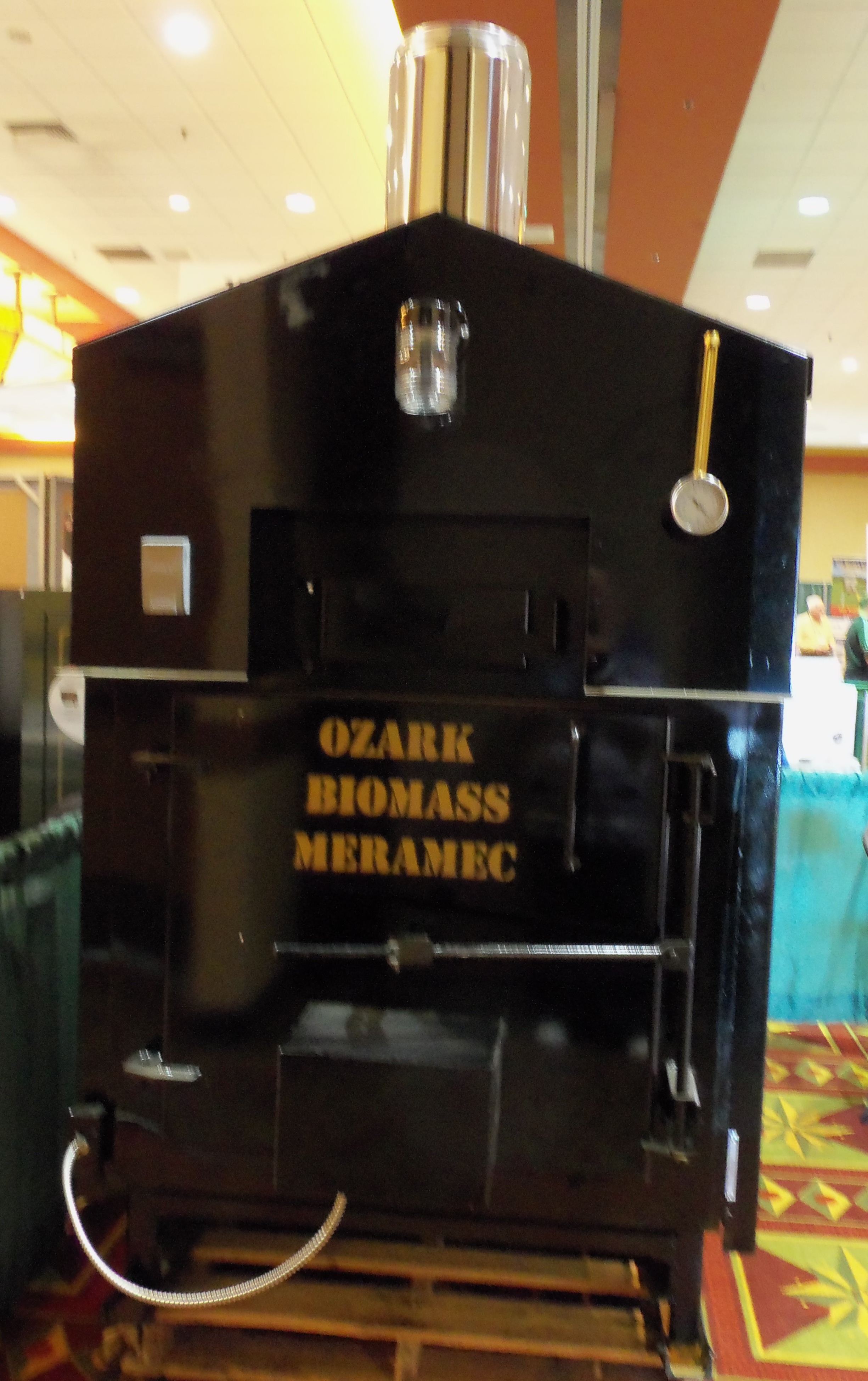

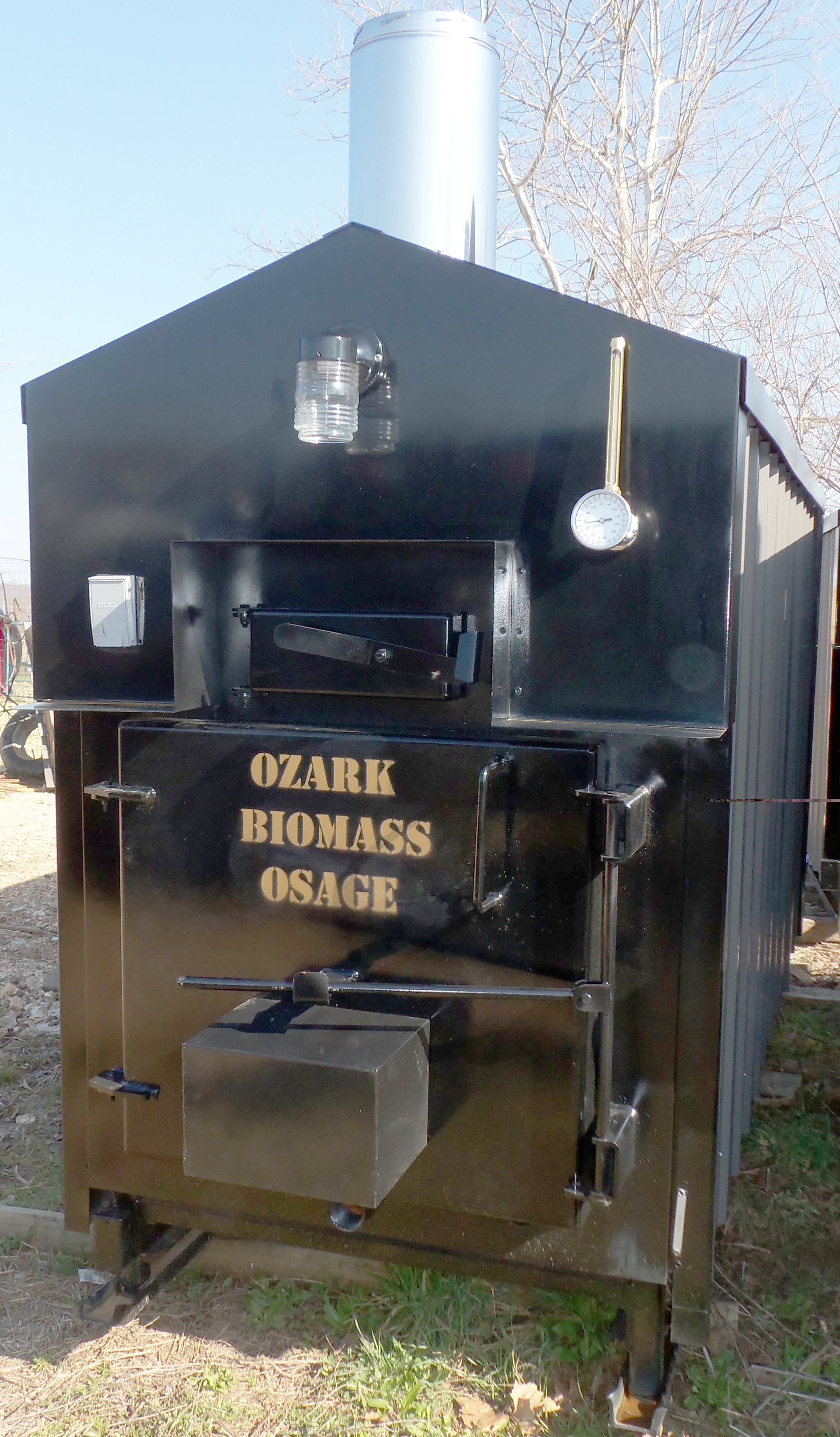

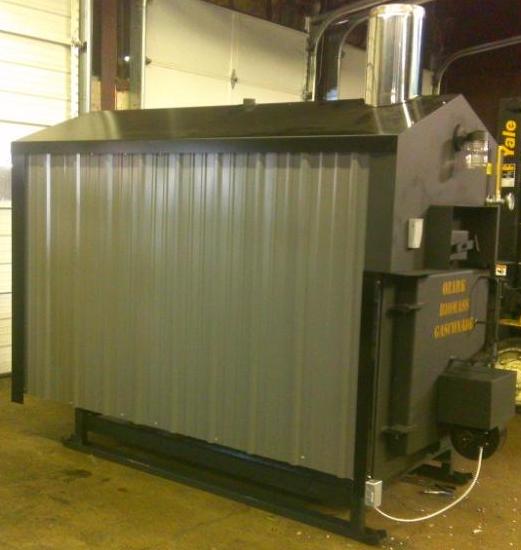

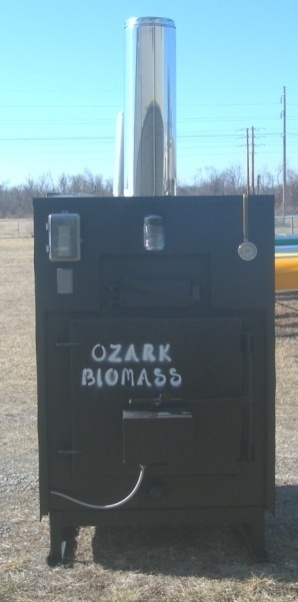

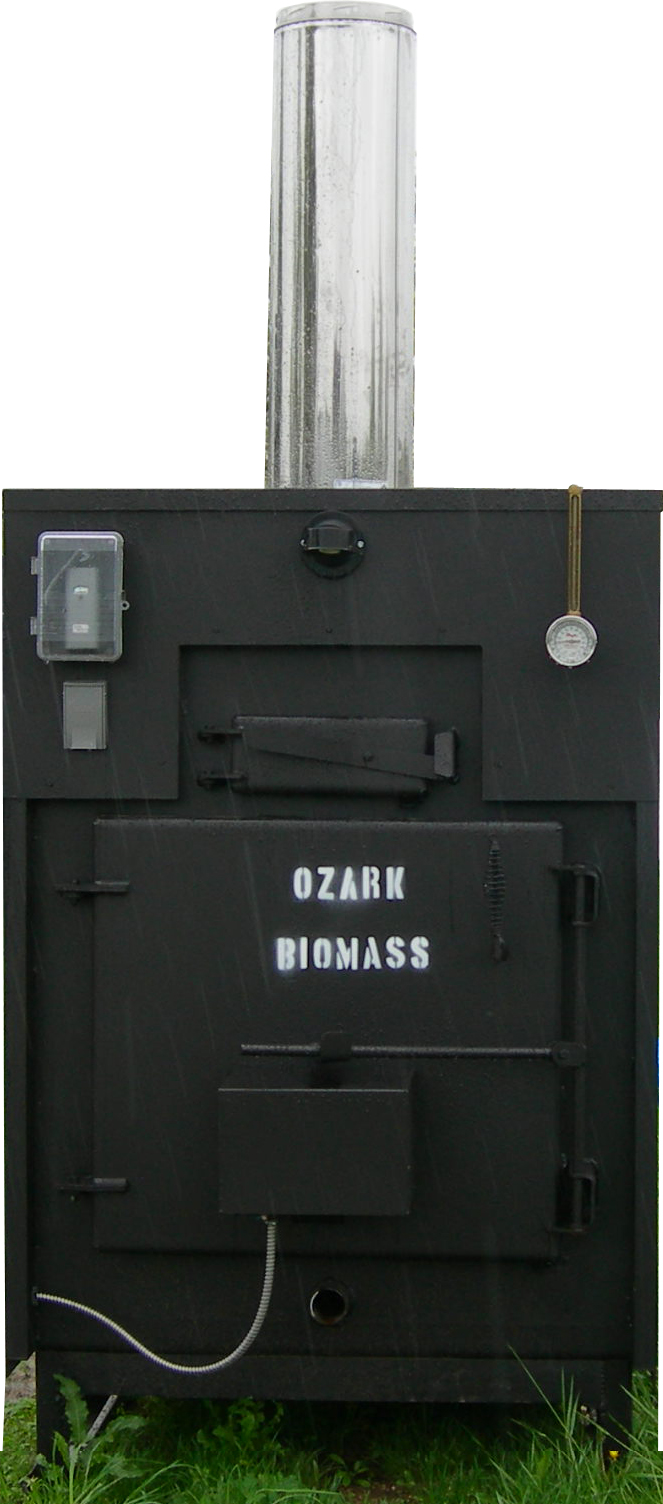

Prices and ServicesThe Ozark Biomass Water Stove, is American made and durably built to endure the coldest of Alaskan winters. These water stoves consist of a durable wood-burning fire box surrounded by water. Being surrounded by water prevents burnouts. The 304 non-magnetic, stainless steel, Double Pass Flue runs horizontally through the water reservoir. Any wood stove or fireplace looses most of its heat through the flue; with this double pass flue system, the heat of the flue actually helps heat the water in the reservoir. The automatic draft system keeps the water in the water tank at a constant 180˚. This water makes heat readily available when your house calls for heat. The water reservoir is surrounded, like a thermos, by a thick polystyrene insulation. Hot water is pumped through an insulated pipe to a heat exchanger unit located in your heating ductwork or through an existing hot water system; radiant floor heat, or baseboard / radiator units. Also, unlike a traditional wood stove or fireplace this system allows for a more constant heat, just as your gas or electric furnace does. The domestic hot water coil sits submerged in the water tank. Cold water comes in and hot water goes out. This gives you inexpensive continuous hot water. You can take a 4 hour shower and still wash 20 loads of laundry with hot water to spare. Your Water Stove can heat your swimming pool or hot tub, most use what is called a shell and tube heat exchanger to do this they work great. It can also be hooked to your clothes dryer to eliminate your heating element or gas burner in your clothes dryer.

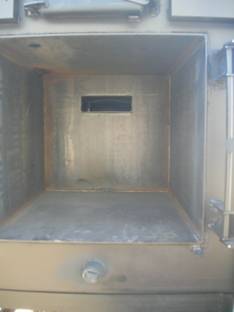

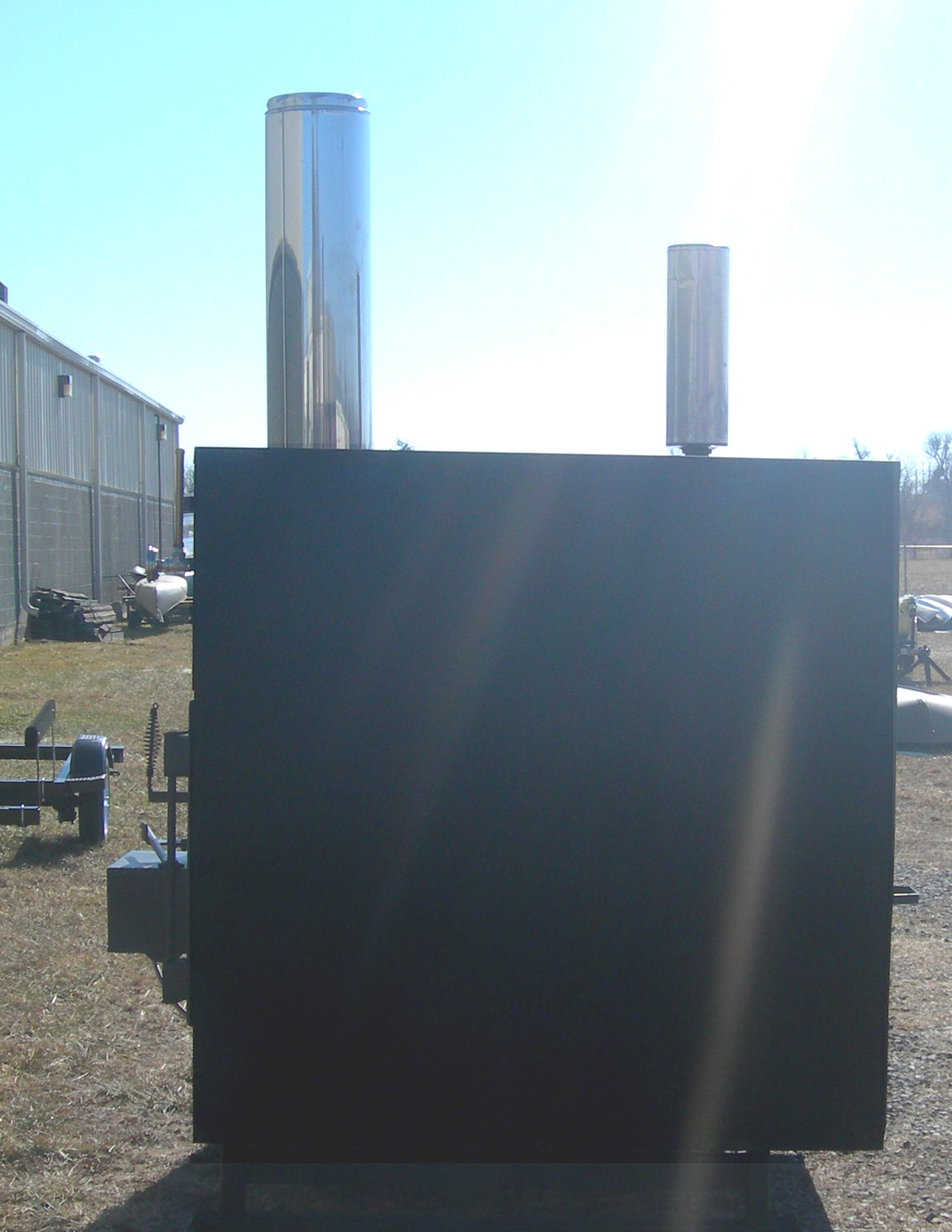

Construction of stoves Side wall, bottom and top of water tank is 3/16 inch steel. Tank ends are ¼ inch steel. The Fire box is 1/4 inch steel. The fire box and cleanout doors are insulated with refractory cement to keep the heat in. The doors all have 1 inch rope gasket to seal them. The double pass Flue is a 4 X 12 304 stainless steel tube. It runs out of the back of the firebox to an easy to access cleanout chamber in the back. It comes out of the cleanout chamber on the back and goes back to the front to the double wall stainless steel flue pipe on the top. The water tank has a two inch cleanout on the front and a four inch clean out on the back making it easy to maintain. The water tank is equipped with one extra domestic water coil or swimming pool port and depending on the model you choose multiple heat zones.
They have a condensation tank so you don’t have to hardly ever add water to the furnace. The stove in insulated with foam insulation to maximize efficiency. |
|
|
||||||||||||||||||||||||||||
OUR ECONOMY MODELS

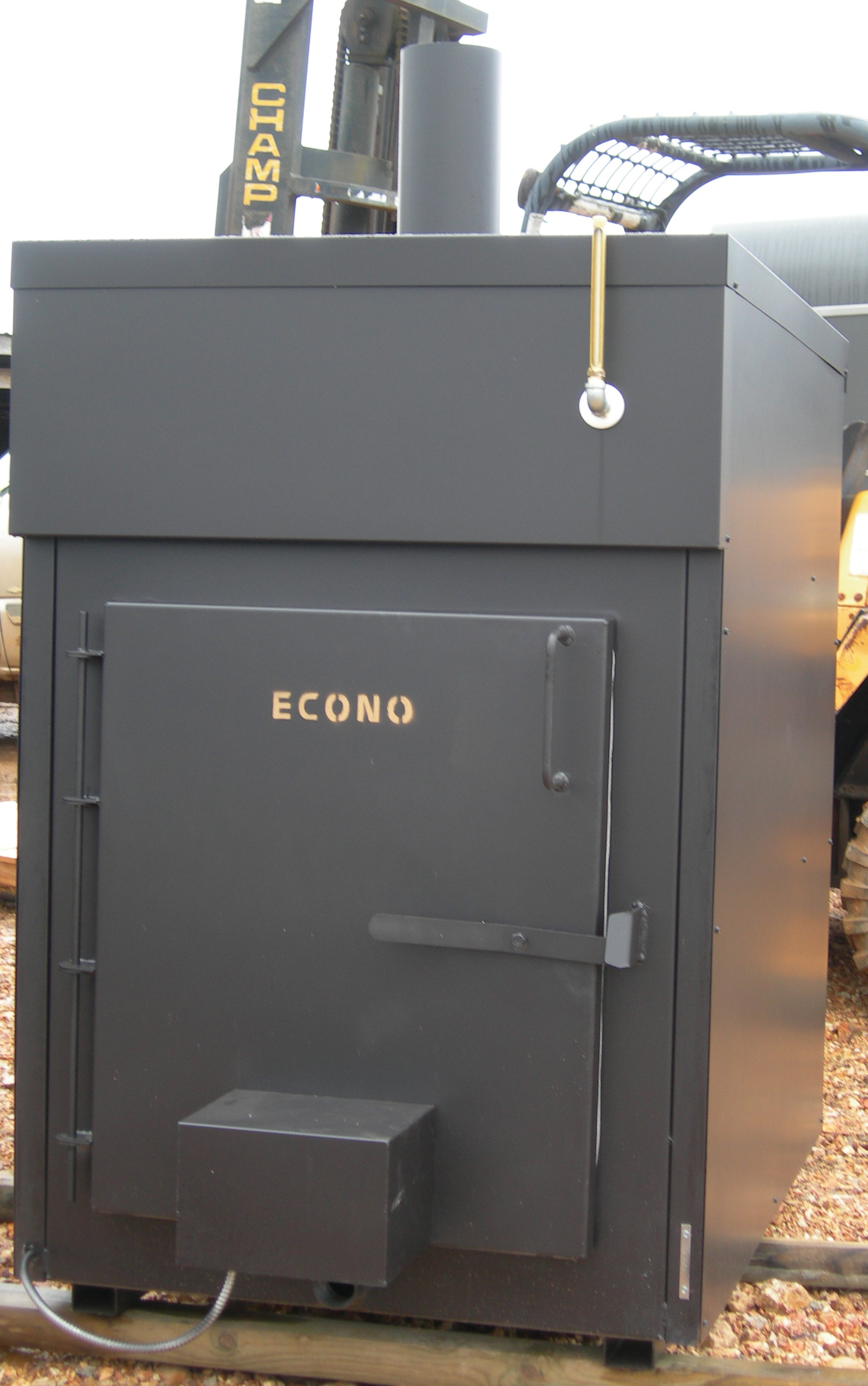

The Econo Outdoor Wood Furnace is built of quality material by Missouri craftsmen in the USA. The water tank is 11 gauge steel, the fire box is 9 gauge steel, with a 6 inch X ¼ inch flue pipe that runs vertical out the top of the fire box through the water tank then out to the atmosphere.
The Econo Outdoor Wood Furnace has a large firedoor to allow big pieces of wood to be burned without splitting.
The Econo Outdoor Wood Furnace comes standard with a three (3) year warranty.
 |

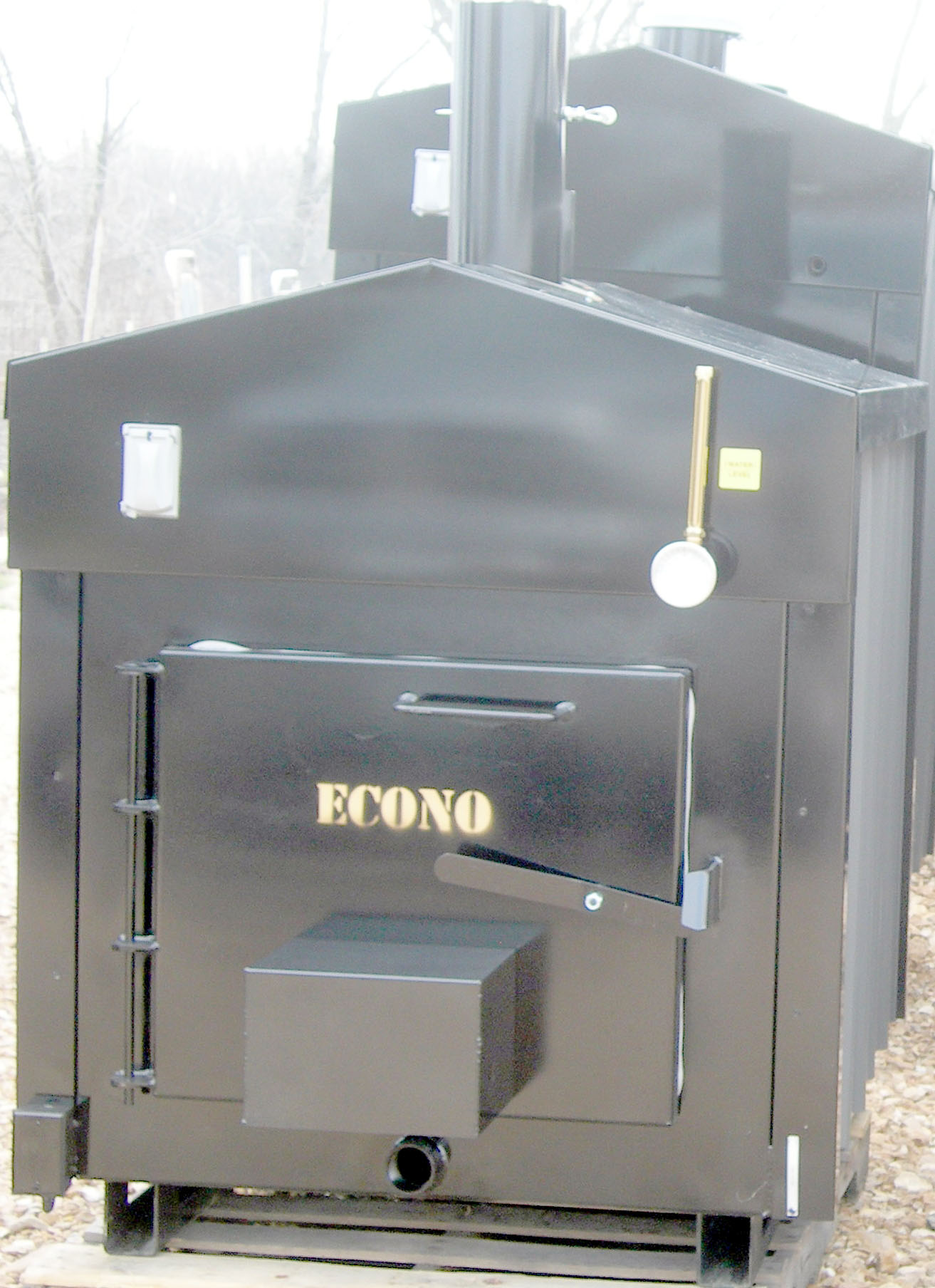

The Econo 100
$2650.00
This
unit
comes
with
water
treatment,
forced
draft
with
automatic
damper,
aquastat
controlled,
digital
temperature
readout,
& water
level
gauge. | |||
Install Kits for the Econo Furnace
E-100 #1 $800.00 50 foot insulated line, pump, flange kit, heat exchange coil, fittings, thermostat, relay, ground rod & clamp.
E-100 #2 $1000.00 50 foot insulated line, pump, flange kit, heat exchange coil, fittings, thermostat, relay, ground rod & clamp, water heater valve, and domestic water coil.
E-200 #1 $800.00 50 foot insulated line, pump, flange kit, heat exchange coil, fittings, thermostat, relay, ground rod & clamp.
E-200 #2 $1000.00 50 foot insulated line, pump, flange kit, heat exchange coil, fittings, thermostat, relay, ground rod & clamp, water heater valve, and domestic water coil.
Optional Parts
Condensator $60
Second Domestic Coil $196
Cleanout Tool Kit $73.05
Test Kit $31
|
The
Econo
200
$3200.00
This
unit
comes
with
water
treatment,
forced
draft
with
automatic
damper,
aquastat
controlled,
digital
temperature
readout,
& water
level
gauge. | |||
